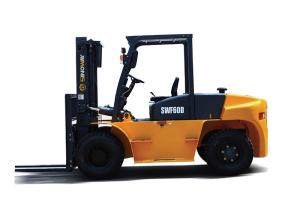

Name: ISUZU Hydraulic Material Handler 6 Ton Diesel Forklift 6000kg Base Capacity
Brand: SINOWAY
Price: 1 USD

Brand Name : SINOWAY

Model Number : SWF60D

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 unit

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 500 units per year

Delivery Time : 30 days

Packaging Details : Nude

Product Name : Diesel Forklift

Engine model : ISUZU

Rated power : 82.4kw / 2000rpm

Max. Torque : 416.8N.m/1500rpm

Displacement : 6.494L

Base capacity(rated load center) : 6000kg

Contact Now

6 Ton Diesel Forklift With Good Performance And Low Forklift Price Hydraulic Material Handler

Engine model	ISUZU
Rated power	82.4kw / 2000rpm
Max. Torque	416.8N.m/1500rpm
Displacement	6.494L
Base capacity(rated load center)	6000kg
Load center	600mm
Service weight (unloaded)	8500kg
Front axle load (loaded / unloaded)	12950kg/3800kg
Rear axle load (loaded / unloaded)	1550kg/4700kg
Wheels (front/rear)	4/2
Wheelbase	2250mm
Tyre size (front/rear)	8.25-15-14PR/8.25-15-14PR
Tread width	1474mm/1730mm
Max. Fork height (with std. 2-stage mast)	3000mm
Free lift (with std. 2-stage mast)	210mm
Height, upright lowered (with std. 2-stage mast)	2534mm
Height, upright extended (with std. 2-stage mast)	4377mm
Mast tilt, fwd/back (with std. 2-stage mast)	6°/12°
Carriage width	1840mm
Fork spread (minimum/maximum)	300mm/1836mm
Fork dimensions (T x W x L)	65 x 150 x 1520mm
Length to fork face (with std. 2-stage mast)	3517mm
Overall width	2040mm
Overhead guard height	2520mm
Turning radius (minimum outside)	3300mm
Fork overhang (with std. 2-stage mast)	592mm
Right angle stack (add load length and clearance)	5292mm
Ground clearance (minimum loaded/center of wheelbase)	203mm/250mm
Travel speed (loaded/unloaded)	23/25km/h
Lift speed (loaded/unloaded)	0.44/0.52m/s
Lower speed (loaded/unloaded)	0.55/0.4m/s
Max. Draw-bar pull (loaded)	5500kg
Max. Gradeability (loaded/unloaded)	32%/20%
Service brake	Foot/Hydraulic
Parking service	Hand/Mechanical

ISUZU Hydraulic Material Handler 6 Ton Diesel Forklift 6000kg Base Capacity
